Thermal Protection tape
Manufacturing and supply of welding thermal protection support device
MARK-III GL
Having been approved by a French company called Gaztransport & Technigaz (GTT), CBM-TP is a flexible mat constituted of aluminum foil and silica or glass fiber, and a necessary item, equipped with GTT thermal protection system, for protection from thermal damages of combustible components during fillet welding of tack materials made of liquefied natural gas (LNG) and heat-protection materials such as plywood located underneath.
-
Product Reference

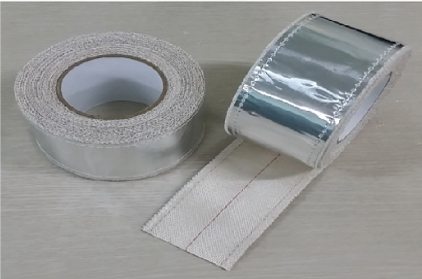

Model NO.MARK III-GL
-

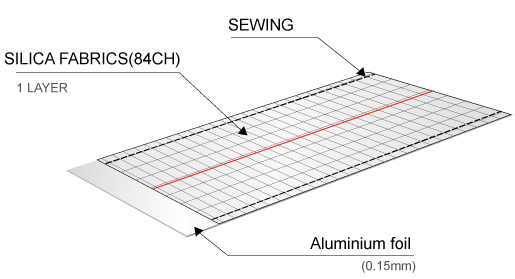

Size & Shapes
This product is a thermal protection made of one aluminium foil (thickness:0.15) and siltemp silica fabrics (84CH, THICKNESS : 0.66mm) to be used for prevention any damage to the insulation components during the welding works of tanks of membrane LNG carriers built according to our MARK III system under GTT license.
This MARK III-GL is upgrade version with MARK III and very convenient when use for repair.
Product Specification
| NAME OF GOODS | WIDTH(mm) | THICKNESS(mm) | LENGTH(M) | NOTE |
|---|---|---|---|---|
| MARK III (60mm) | 60 | 0.81 | 10M | STANDARD |
| MARK III (80mm) | 80 | 0.81 | 10M | STANDARD |
| MARK III (Orders) | Any size | 0.81 | 10M | ORDER PRODUCTION |

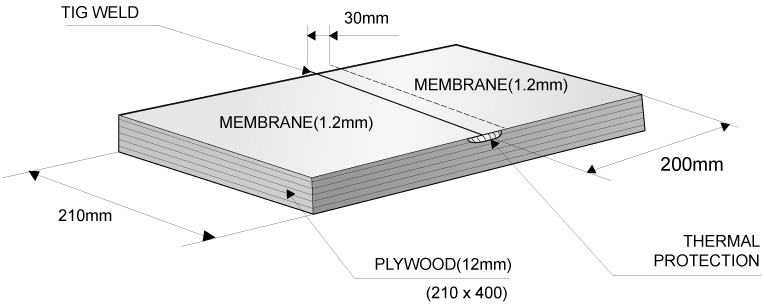

Weld Details [example]
